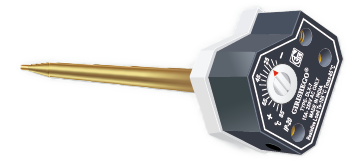

'DLX' THERMOSTAT
For Panel Boards & Switchgear Industries

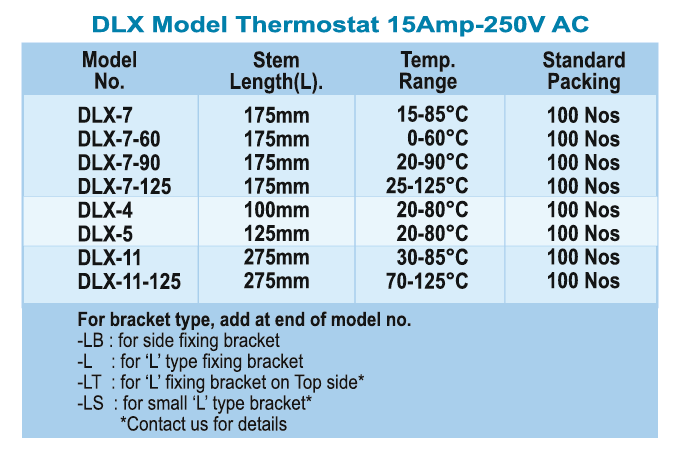

(DLX, DLX-LB,DLX-L, DLX-LT, DLX-LS)
-DjXIrTgC.png)
Also Available
- 48V, 110 V & 415 V AC
- Stem length of 11 '(275mm) & 5'(125)
'GIRISHEGO' thermostats are ideal for temperature control of space heaters used in LT & HT switchgear & panel boards etc.
Principle of Operation
- With temp rise, the principle of differential expansion of brass tube and a Nickel/Iron (inver) Rod is used to actuate a highly accurate snap action micro gap switch, located in the head which makes it keep the temperature constant within the differential i.e. a single pole, single throw, normally closed circuit breaks (opens) on rise of temperature.
Installation

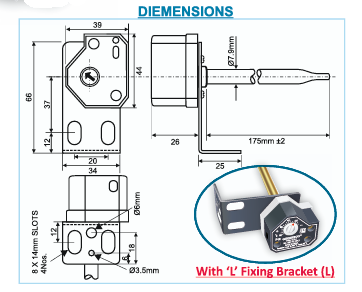

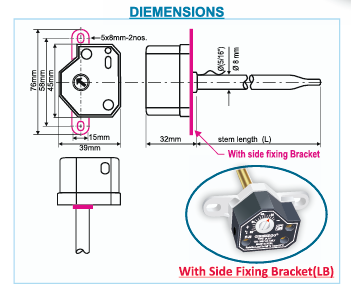

- A spring steel clip is provided for snap on fixing of Thermostat, Optional bracket with two fixing holes of Dia. 5mm at a center distance of 58mm can be provided. It can be fixed in any position
Intended Use
- Temperature control of space heaters used in LT & HT switchgear & panel boards etc.

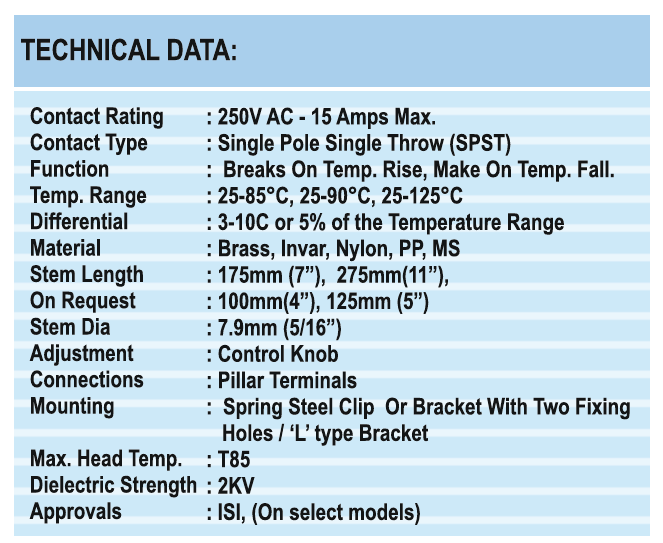

More info
-NVbEsOnn.png)
-BIVi7_oP.png)
-DZDNjwp7.png)
-BiVD4ebS.png)
