ROUND THERMOSTAT

For Panel Boards & Switchgear Industries

(100 series, 200 series, & LB)

ROUND THERMOSTAT

Also Available

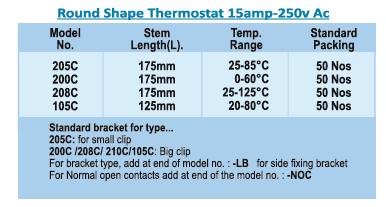

  • 48V, 110 V & 415 V AC
  • Stem length of 11 '(275mm) & 5'(125)
  • Normally open contacts (N.O.C)
  • 20Amp.thermostat
  • Preset at fixed temperature

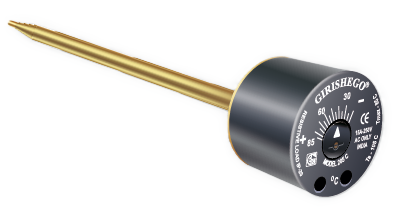

'GIRISHEGO' thermostats are ideal for temperature control of space heaters used in LT & HT switchgear & panel boards etc.

Principle of Operation

  • With temp rise, the principle of differential expansion of brass tube and a Nickel/Iron (inver) Rod is used to actuate a highly accurate snap action micro gap switch located in the head which makes it keep the temperature constant within the differential i.e. a single pole, single throw, normally closed circuit breaks (opens) on rise of temperature.

    Installation

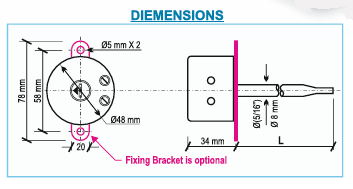

    • A spring steel clip is provided for snap on fixing of Thermostat, Optional bracket with two fixing holes of Dia. 5mm at a center distance of 58mm can be provided. It can be fixed in any position.

    Constrution

    • The micro gap switch assembly is mounted on a heat resistant base, with rigid brass pillar terminals. Heavy duty Ag cdo contacts are provided for long trouble free life.
    • A thermoplastic cover with clear and precise graduations is provided along with a setting knob. Optional bracket with two fixing oval holes of Dia. 5 x 8mm at a center distance of 58mm can be provided.
    • Thermostat can be fixed in any position. These are available in standard stem lengths of 7 '(175mm)'.

    Intended Use

    • Temperature control of space heaters used in LT & HT switchgear & panel boards etc.
