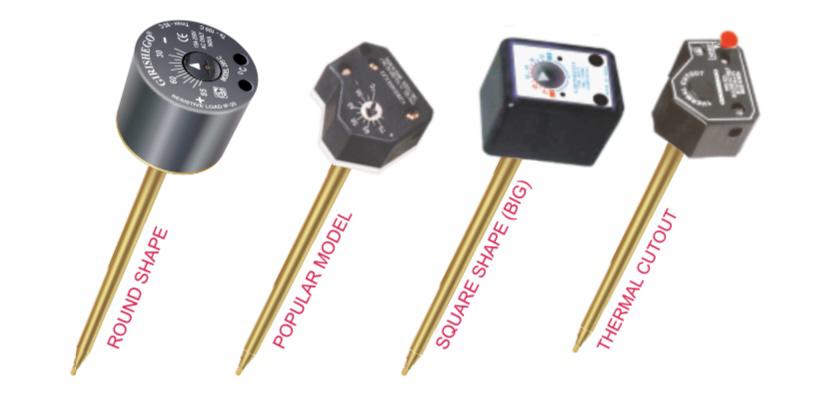

STEM THERMOSTAT

For Panel Boards & Switchgear Industries

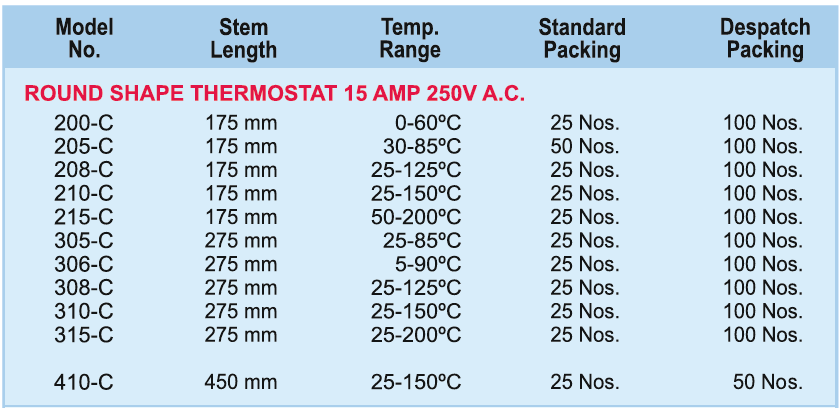

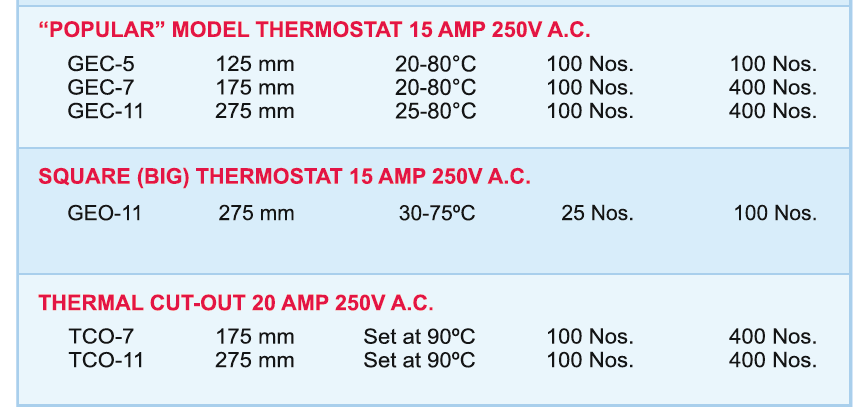

(200 series, 300 series, 400series, GEC, GEO, TCO)

STEM THERMOSTAT

Also Available

  • 1) Smaller stem lengths of 4'(100 mm) & 5'(125mm)
  • Normally open contacts (N.O.C)
  • 20Amp.thermostat
  • Preset at fixed temperature

'GIRISHEGO' Range of stem type thermostats are designed to meet a variety of requirements for domestic, industrial and commercial heating systems. Our thermostats come in different shapes and models to suit the individual requirement of application and economy. These are suitable for instant and storage type water heaters, water and oil baths, moulds, sterilizers, ovens, boilers, switchgear and panel boards and other domestic and industrial heating appliances.

Installation

  • A spring steel clip is provided for snap on fixing of Thermostat, Optional bracket with two fixing holes of Dia. 5mm at a center distance of 58mm can be provided. It can be fixed in any position.

Constrution

  • The micro gap switch assembly is mounted on a heat resistant base, with brass terminals. Heavy duty Ag cdo contacts are provided for long trouble free life.
  • A thermoplastic/thermosetting cover with clear and precise graduations is provided along with a setting knob. A spring steel clip is provided for snap on fixing ofThermostat. It can be fixed in any position.
  • Thermostats are available in three standard stem lengths 7'(175mm), 11'(275 mm), 18' (450mm) with tube diameter of 5/16'(8mm).

Intended Use

  • Temperature control of space heaters used in LT & HT switchgear & panel boards etc.
