ALUMINIUM SPACE HEATERS

For Panel Boards & Switchgear Industries

(SH, SHISS, SHIL)

Aluminium Space Heaters

Features

  • Aluminum body for fast dissipation of heat into air
  • Perforated cover for protection
  • Quick and uniform heating
  • Withstands mechanical shock and vibration
  • Very good insulation resistance

'GIRISHEGO' Aluminium Space Heaters are ideal for prevention of condensation, corrosion, Leakage currents in LT. & H.T. Switchgears, Panel boards/ electronic instruments & panels etc

Working Principle & Features

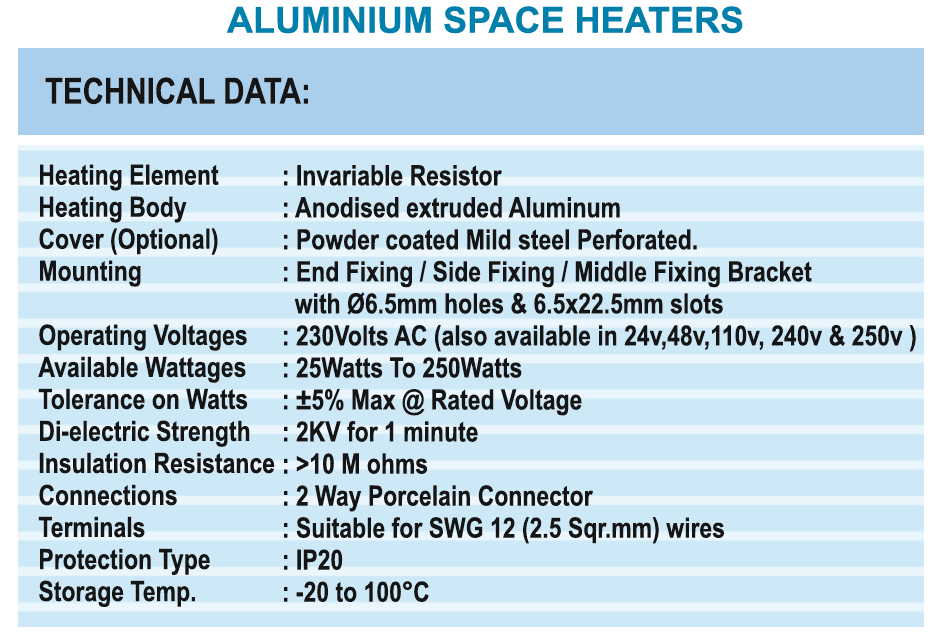

  • Body is made of anodized heat sink grade extruded aluminium for fast dissipation of heat into air. High quality resistance heating element is insulated with mica for optimum insulation even in extreme humid conditions.
  • Resistance element and insulation are held tight in between aluminium parts and squeezed for quick and uniform heating. Heater can withstand much higher degree of mechanical shock and vibration.

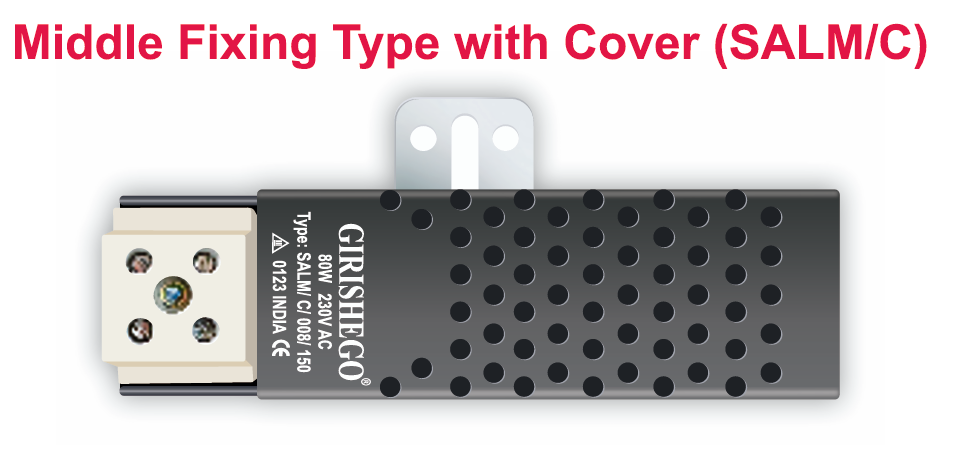

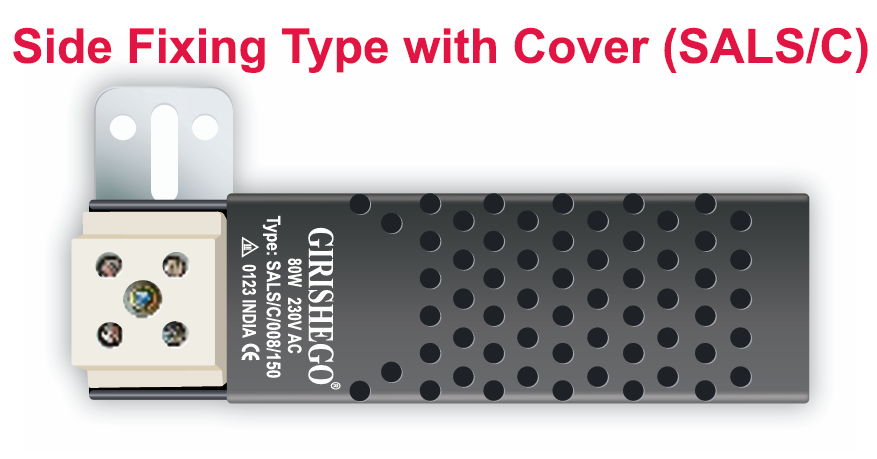

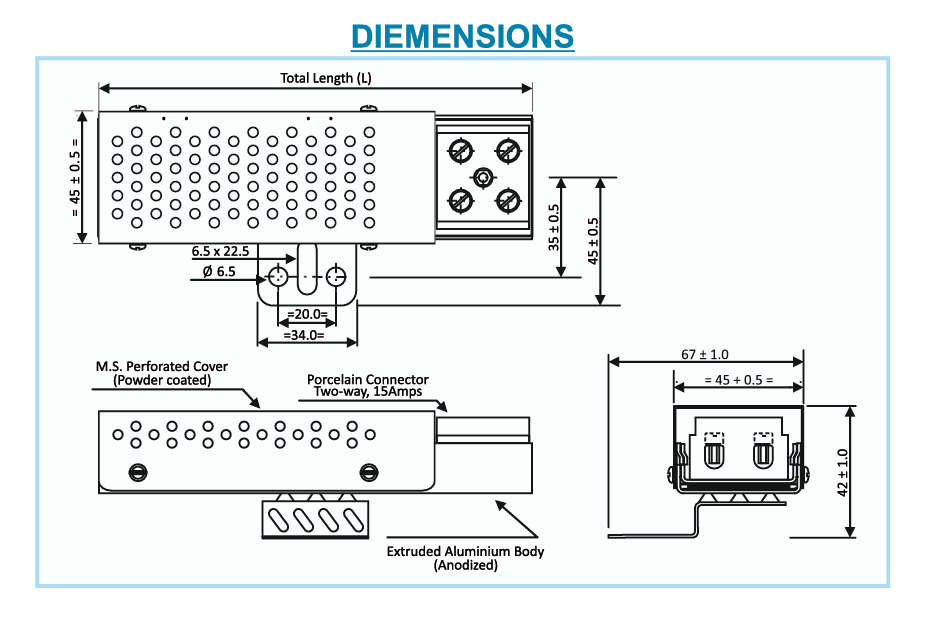

  • Elevated body provides for easy passage of heat directly to air, without heating panel body. An optional Perforated cover made of Powder coated M.S. sheet can be provided for extra safety

    Installation

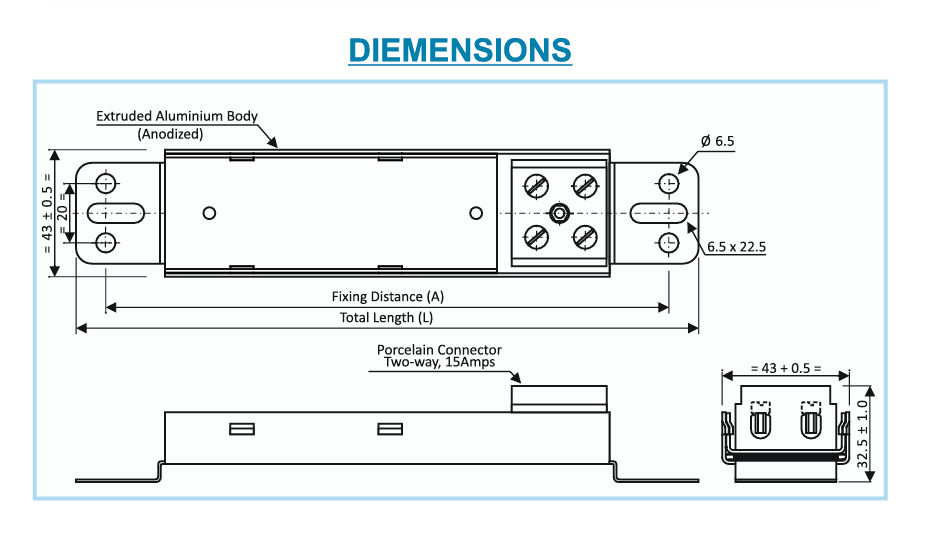

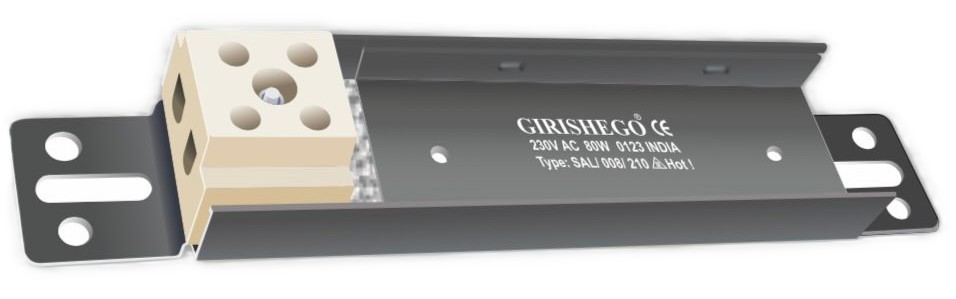

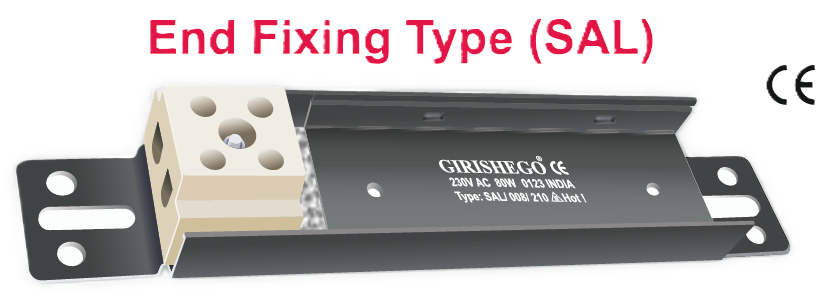

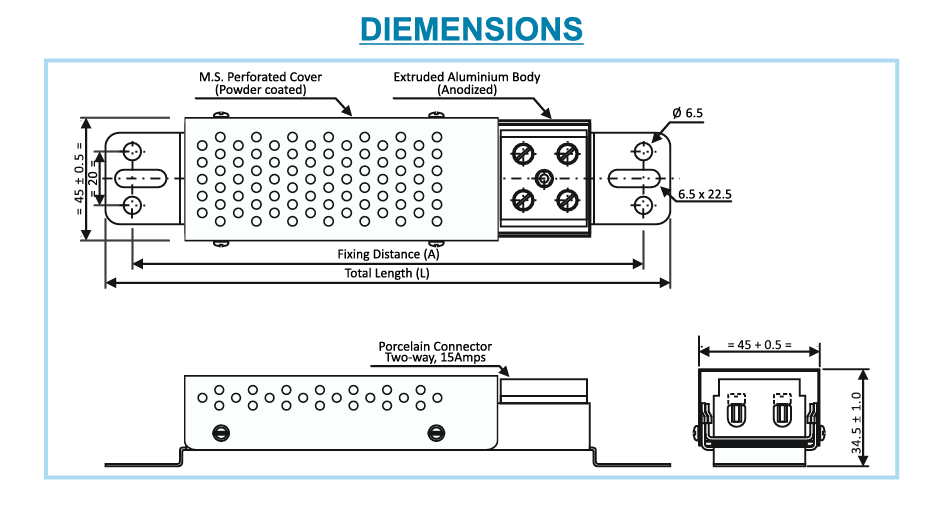

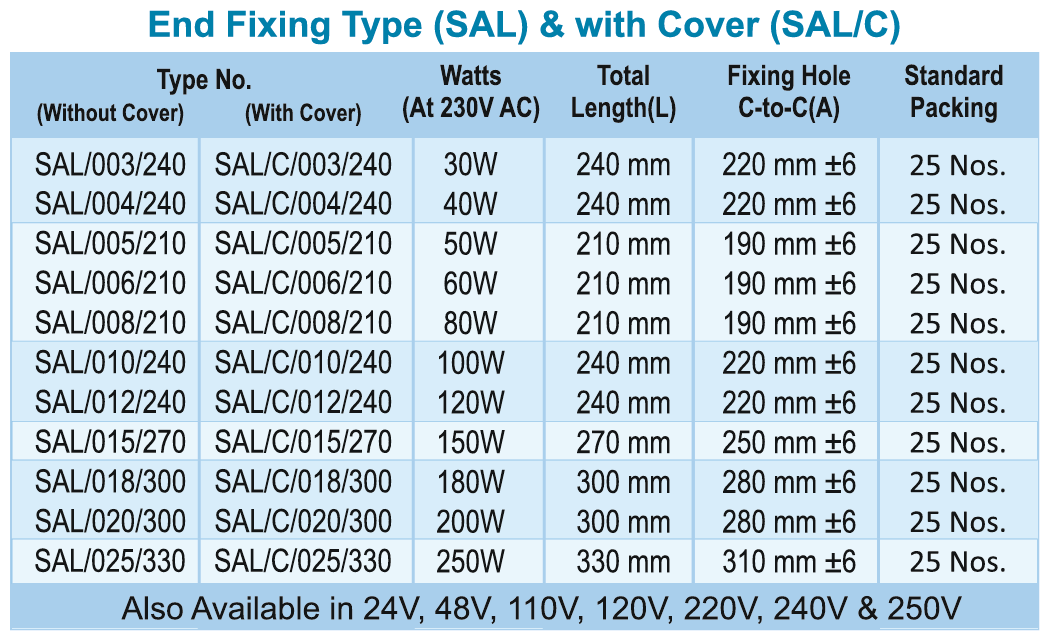

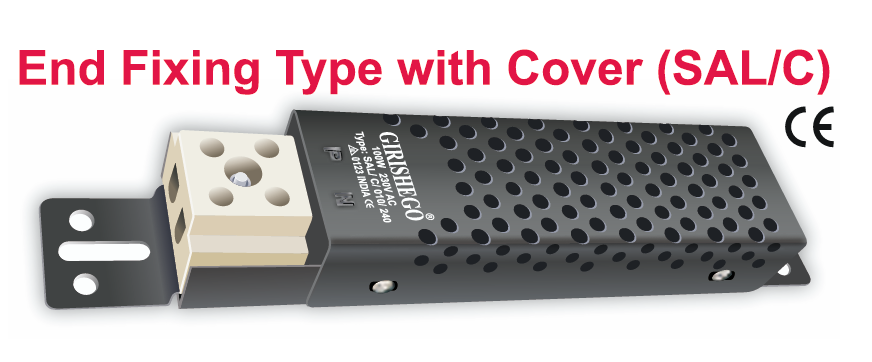

    • In END FIXING type model one fixing oval holes of 6.5mmX22.5mm and two 6.5mm Holes are provided at each end.

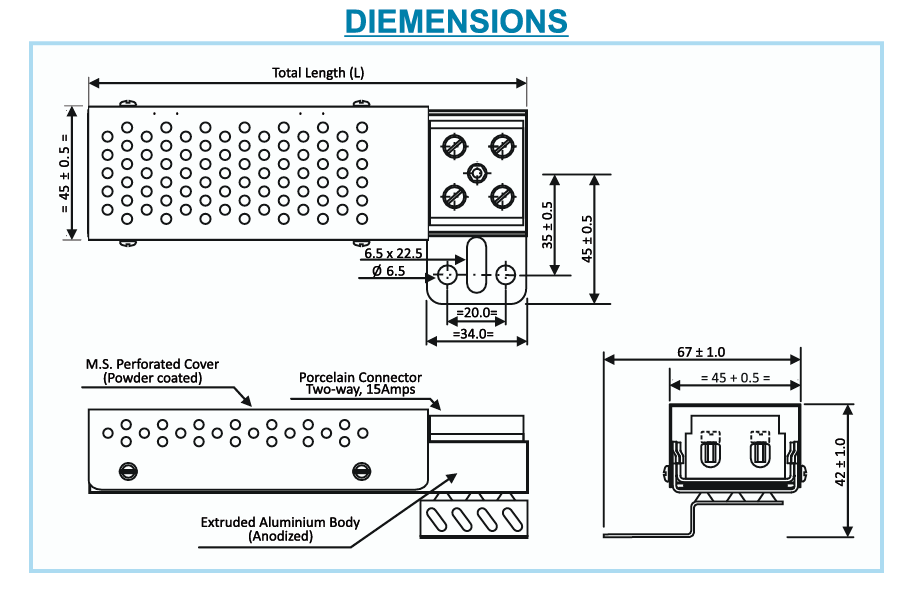

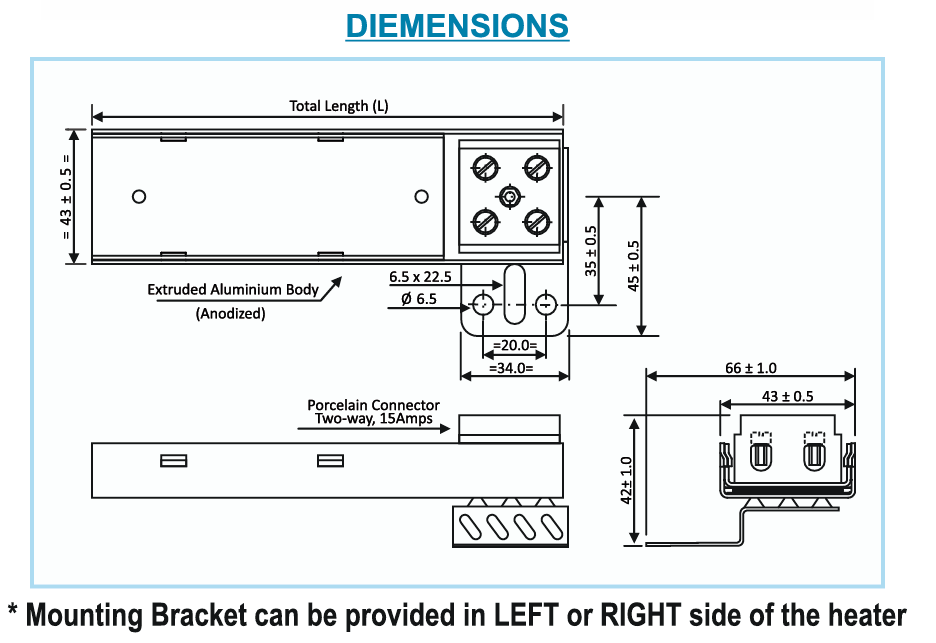

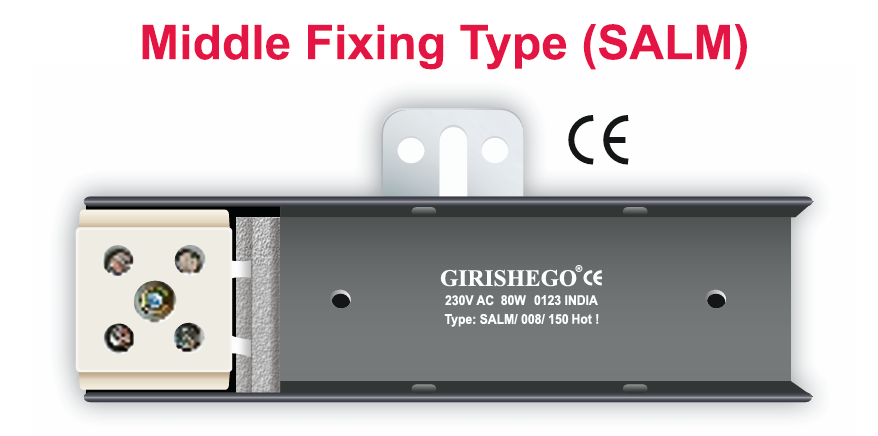

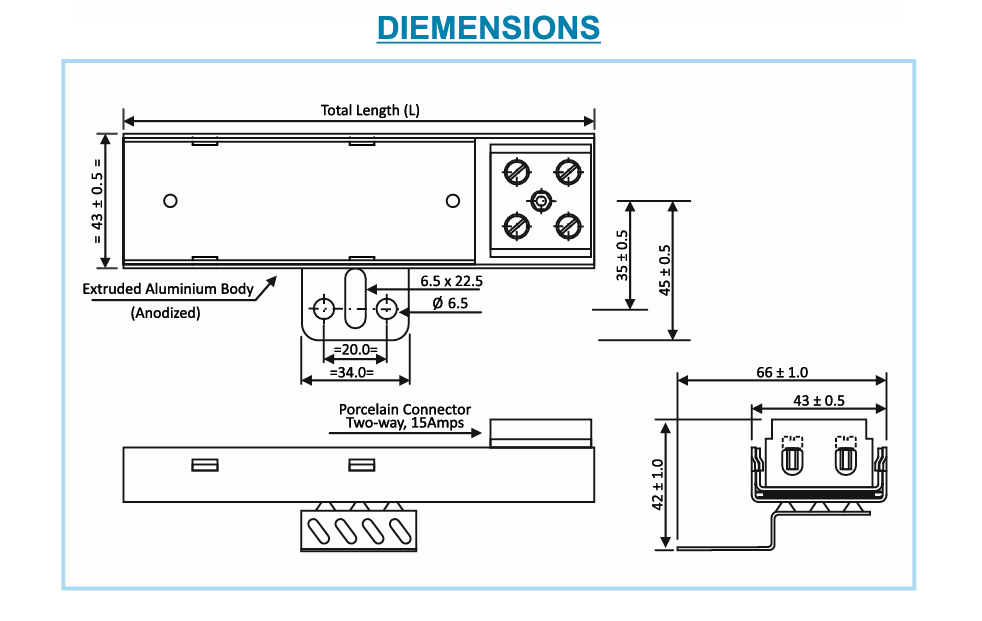

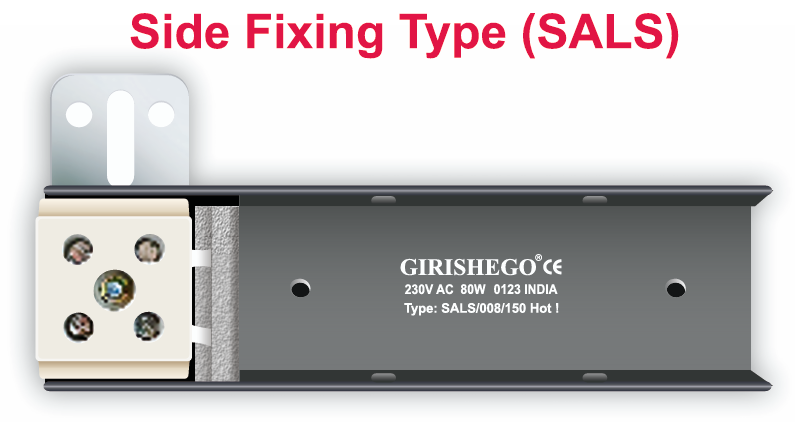

    • In SIDE & MIDDLE FIXING type models one fixing oval hole of 6.5mmX22.5mm and Two 6.5mm Holes are provided in a bracket at Side Middle of the heater.
    • Installation can be done in vertical or horizontal position although horizontal mounting is preferred. Distance from surface of panel should be at least 10mm. and distance from plastic parts should be at least 50mm.
    • Connection wire must be on the side or below to avoid warming up of the wire.

    Intended Use

    • Prevention of condensation
    • corrosion
    • of Leakage currents in LT. & H.T. Switchgear panel boards, enclosures, switch boards, & electronic instruments etc

    Remark

    • It is recommended to use a 'GIRISHEGO' thermostat to control the heater.
