BOX TYPE SPACE HEATERS

For Panel Boards & Switchgear Industries

(BOX)

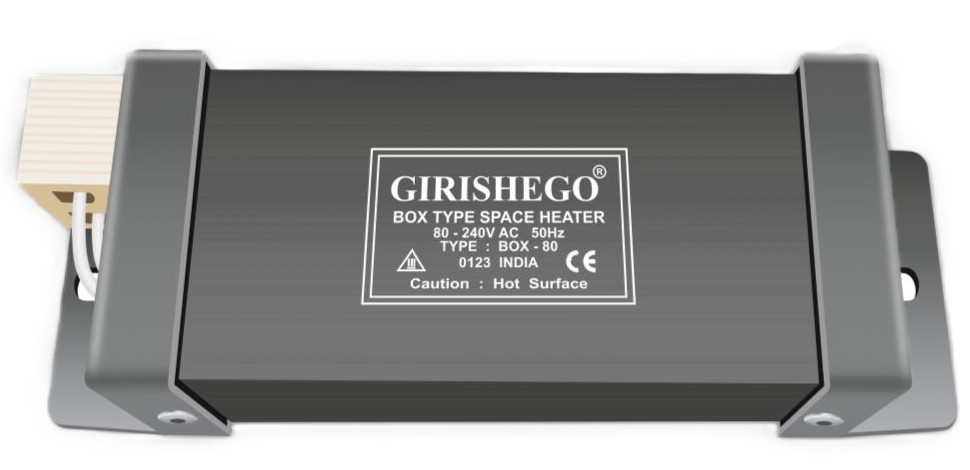

BOX TYPE SPACE HEATERS

Features

  • Bigger surface area for heat dissipation in Aluminum enclosure
  • Quick and uniform heating
  • Withstands mechanical shock and vibration
  • Very good insulation resistance

'GIRISHEGO' Range of Space Heaters are ideal for prevention of condensation, corrosion. Leakage currents in LT. & H.T. Switchgear panel boards/ electronic instruments & panels etc.

Working Principle & Features

  • Specially developed design with a stainless steel sheathed cartridge heating element in a perforated sheet metal enclosure.
  • Black powder coated finish for rapid heat dissipation.
  • 2 x 2.5 mm porcelain terminal block for electrical connection.
  • Mounting holes provided on one side.

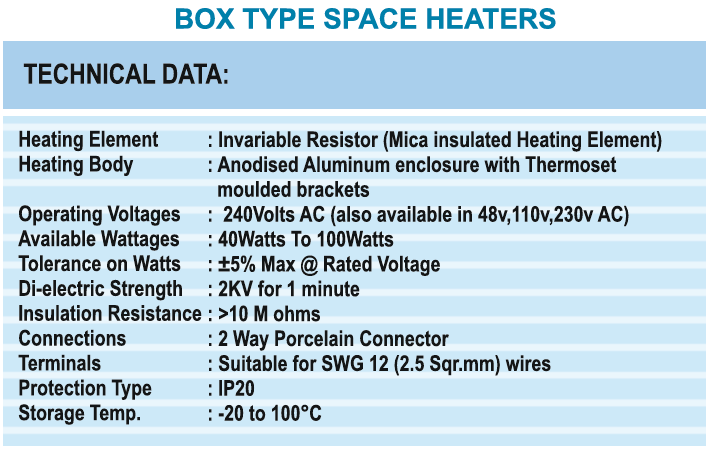

  1. High Voltage Test at 2kV/1Min
  2. Insulation Resistance > 10 Mega Ohms
  3. Power Rating within ±5%

Installation

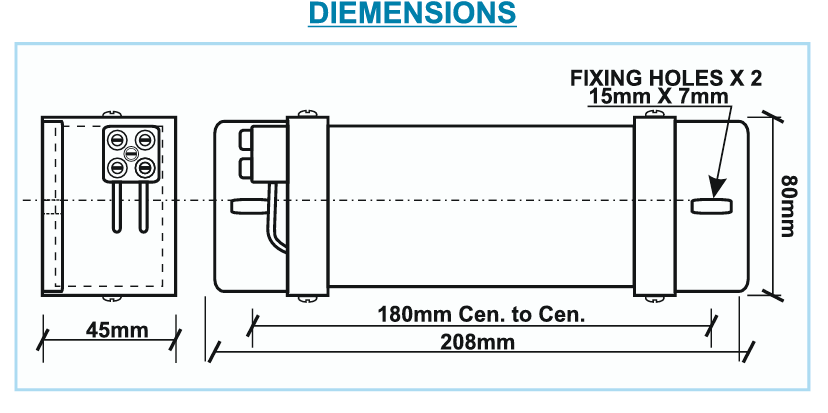

  • Two holes (217mm) provided for mounting on one side of the heater.
  • Can be installed vertically or horizontally, though horizontal is preferred.
  • Distance from panel surface: At least 10mm.
  • Distance from plastic parts: At least 50mm.
  • Connection wire must be on the side or below to avoid warming up.

Intended Use

  • Prevention of condensation
  • corrosion
  • of leakage currents in LT & HT Switchgear panel boards or electronic instruments & panels.

Remark

  • Use a 'GIRISHEGO' thermostat to control the heater.
