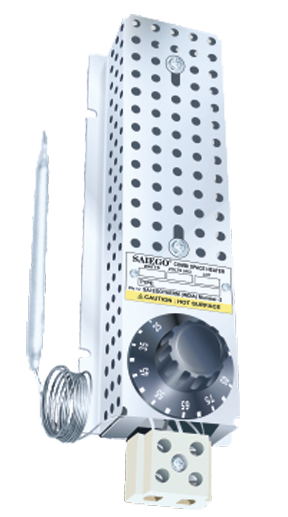

COMBI-SPACE HEATERS
with BUILT IN CAPILLARY THERMOSTAT
(COMBI model)
-DZBMQnwr.png)
Features
- Compact design
- Built-in Thermostat
- Stainless steel cover
'GIRISHEGO' Combi Space Heaters with built-in capillary Thermostat are ideal for prevention of condensation, corrosion & Leakage currents in L.T. & H.T. Switchgear panel boards/electronic instruments & panels etc.
Working Principle & Features
- In this, a long life and sturdy extruded aluminium sheathed, mica insulated heater and an accurate capillary thermostat are place in a Rust resistant steel perforated body.
- A2x2.5 sqr. mm porcelain terminal block is provided for electrical connection.
- The pressure clamp connectors save time and simplify installation.
- Mounting holes provided on one side.

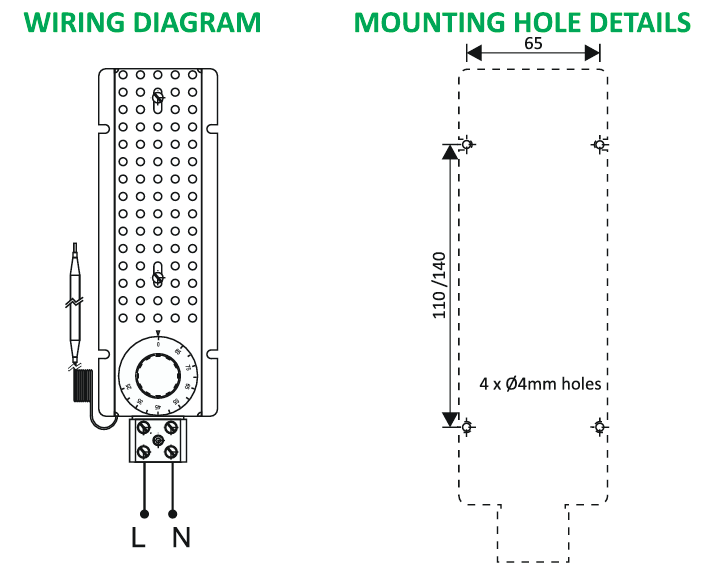

Installation
- Four side slot holes for fixing tabs are provided for fitting the heater in the panel.
- Installation can be done in vertical or horizontal position although vertical mounting is preferred.
- Distance from surface of panel should be at least 10mm and distance from plastic parts should be at least 50mm.
- Connection wire must be on the side or below to avoid warming up of the wire.
Intended Use
- Prevention of condensation, corrosion & Leakage currents in L.T. & H.T.
- Switchgear panel boards, enclosures, switch boards, & electronic instruments etc.
More info
-frjBd7sy.png)
-B9ITyW0V.png)
-M4hYYf9r.png)
-Dc9xoYYS.png)
